Blackbird 4K Displayport 1.4 USB 3.0 2x1 KVM Switch | 4K@60Hz | HDR | YCbCr 4:4:4 | HDCP 2.2 | EU/UK
Rated 3.5/5 based on 11 customer reviews

Blackbird 4K Displayport 1.4 USB 3.0 2x1 KVM Switch | 4K@60Hz | HDR | YCbCr 4:4:4 | HDCP 2.2 | EU/UK

Verfügbarkeit: Auf Lager
€89.99
Wunschliste Vergleichen
KVM Switch


The Blackbird™ 4K DisplayPort® 1.4 and USB 3.0 2x1 KVM Switch allows you to control up to two computers using a single keyboard, mouse, and video display. It is compliant with the DisplayPort 1.4 and HDMI® 2.0 specifications, provides up to 32.4Gbps for DisplayPort and 18Gbps for HDMI, and supports resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space.

  • Supports resolutions up to 4K@60Hz, including 3840x2160, 4096x2160, and all 3D video modes
  • Compliant with the DisplayPort® 1.4, HDMI® 2.0, and HDCP™ 2.2 / 1.4 standards
  • Delivers up to 32.4Gbps for DisplayPort and 18Gbps for HDMI
  • Supports the RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0 color spaces
  • Supports HDR and Deep Color with 16‑bits/channel (48‑bits total) for DisplayPort and 12‑bits/channel (36‑bits total) for HDMI
  • Compatible with the Windows® 2000/XP/Vista®/7/8/10, Mac® OS X®, and Linux® operating systems


KVM Switch KVM Switch KVM Switch


DisplayPort® 1.4 and HDCP™ 2.2 Compliant

This Blackbird™ KVM Switch supports the DisplayPort® 1.4 and HDCP™ 2.2 standards, ensuring compatibility with the latest 4K Ultra HD video content.

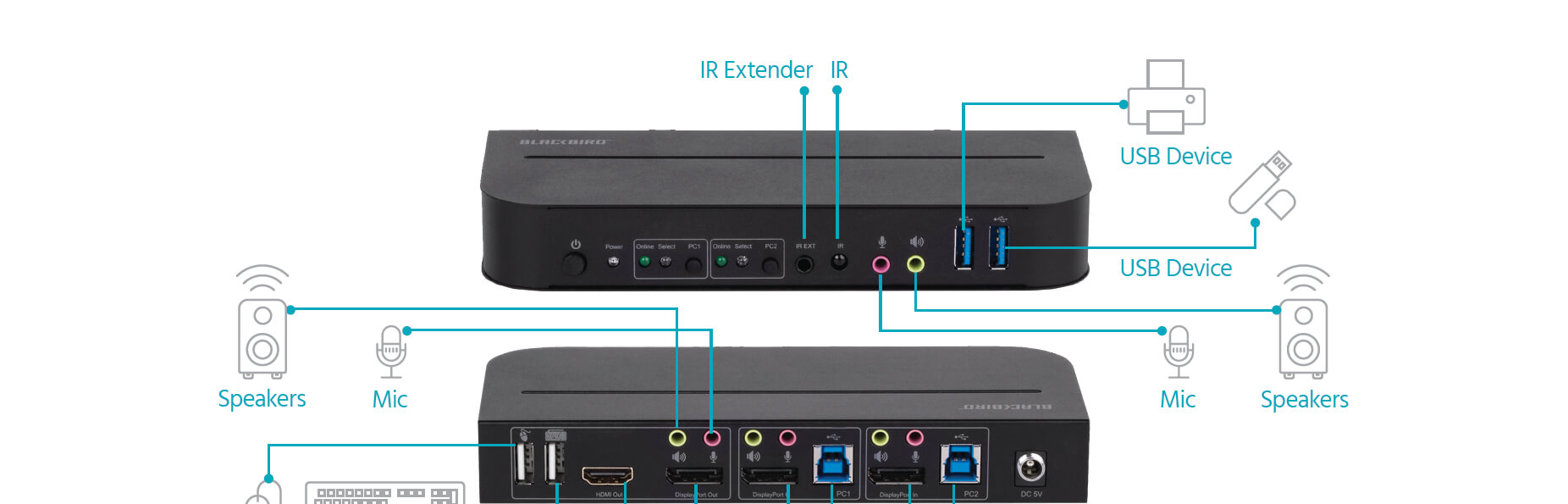

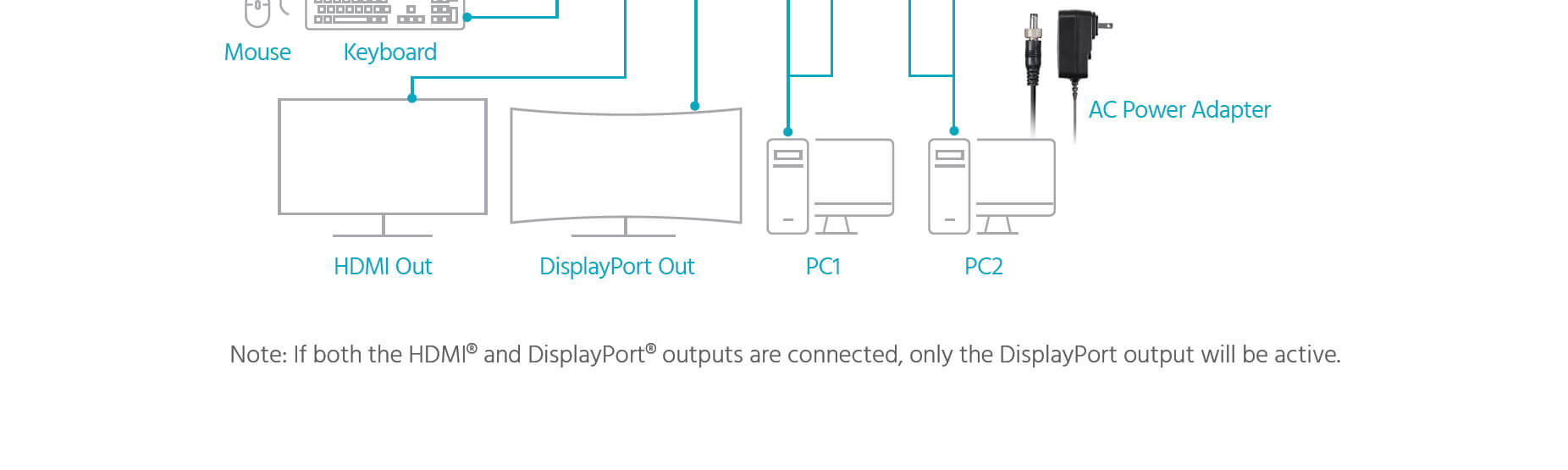

CONNECTION DIAGRAM



KVM Switch KVM Switch

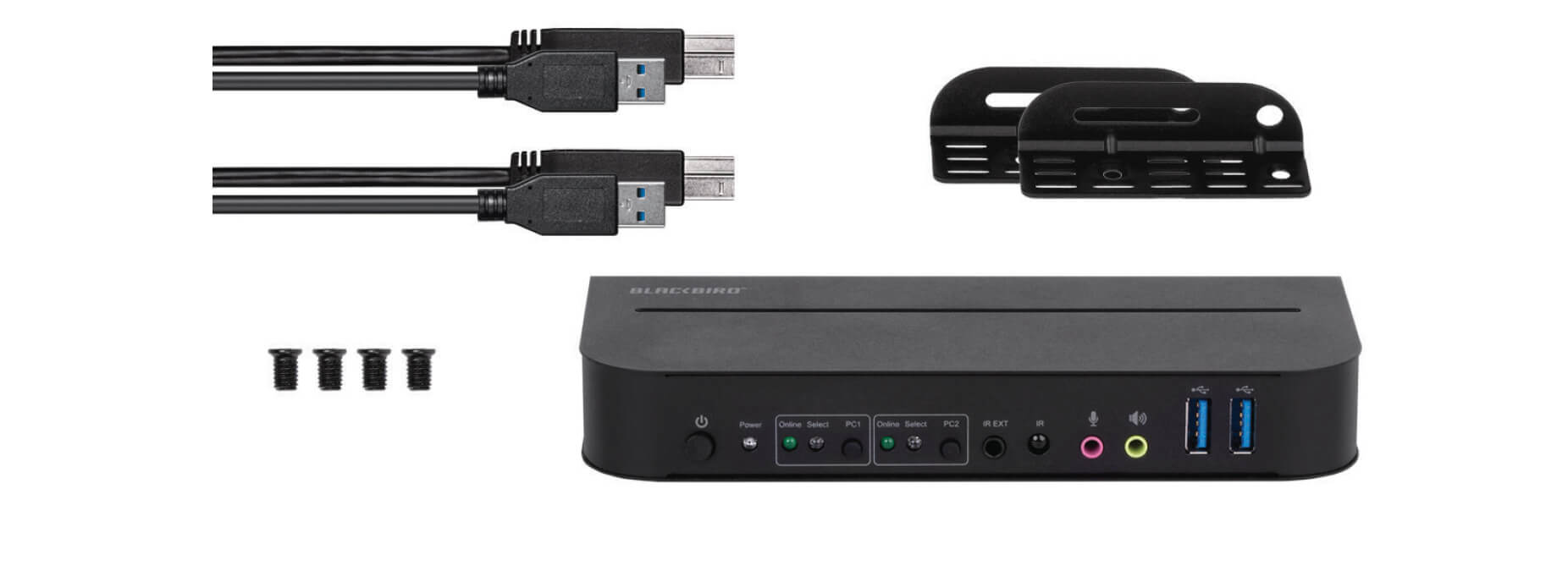

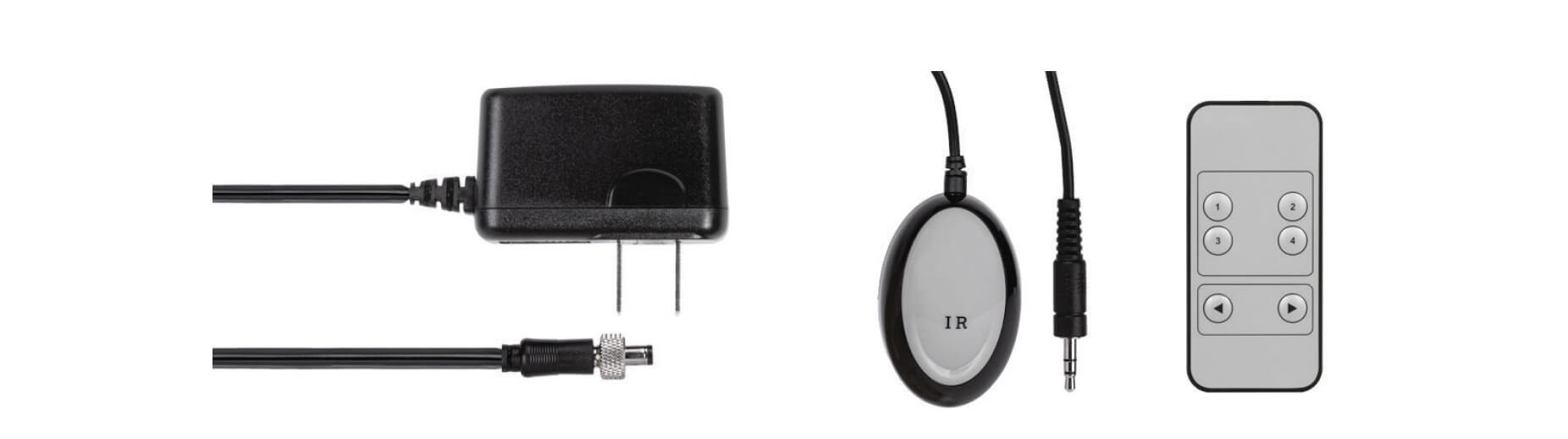

What's Included?

  • DisplayPort® 2x1 KVM Switch
  • AC Power Adapter (5 VDC, 3A)
  • IR Remote Control
  • IR Extender
  • 2x USB 3.0 Cables (Type‑A to Type‑B)
  • 2x Rackmount Ears
  • 4x Rackmount Screws
  • User's Manual


KVM Switch KVM Switch

RECOMMENDED CABLES

KVM Switch
KVM Switch
KVM Switch





PICK YOUR PERFECT BLACKBIRD™ KVM SWITCH




4K HDMI 2.0 2x1 USB 3.0 KVM Switch 4K HDMI 2.0 4x1 USB 3.0 KVM Switch 4K DisplayPort 2.0 2x1 USB 3.0 KVM Switch 4K DisplayPort 2.0 4x1 USB 3.0 KVM Switch 3-Port USB-C HDMI KVM Switch
P/N 42643 42644 42645 42646 42194
Maximum Resolution 4K@60Hz 4K@60Hz 4K@60Hz 4K@60Hz 4K@60Hz
Video Standard HDMI 2.0 HDMI 2.0 DisplayPort® 1.4 DisplayPort 1.4 HDMI® 2.0
HDMI Inputs 2 4 2
DisplayPort Inputs 2 4
HDMI Outputs 1 1 1 1 1
DisplayPort Outputs 1 1
USB Type‑C® Inputs 1
USB Type‑A Inputs 2
USB Type‑B Inputs 2 4 2 4
Mic/Headphones Jacks Yes Yes Yes Yes No
Notes Mic/Headphones jacks on front and rear panels. Connect to one set of jacks, not both. Mic/Headphones jacks on front and rear panels. Connect to one set of jacks, not both. Mic/Headphones jacks on front and rear panels. Connect to one set of jacks, not both.
If both video outputs are connected, the DisplayPort output will be used.
Mic/Headphones jacks on front and rear panels. Connect to one set of jacks, not both.
If both video outputs are connected, the DisplayPort output will be used.
-







Support Files:



Monoprice™, Blackbird™, the Blackbird logo, and all Monoprice logos are trademarks of Monoprice Inc.

DisplayPort® and the DisplayPort® logo are registered trademarks of the Video Electronics Standards Association.

HDMI®, the HDMI Logo, and High‑Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HDCP™ is a trademark of Digital Content Protection LLC.

Microsoft®, Windows®, and Vista® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Mac® and OS X® are trademarks of Apple Inc., registered in the U.S. and other countries.

Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.

USB Type‑C® and USB‑C® are registered trademarks of USB Implementers Forum, Inc.






Warning: This product can expose you to Lead, which is known to the State of California to cause cancer and reproductive harm.
